• automatic feeding, 0 -1,2m/min
• high speed milling head with very resistant inserts, max. width of bevel 62mm/15°, 50mm/45°
• 15-60° infinitely variable angle, without replacing any parts
• material thickness 7 - 80 mm
• the electric circuit is enclosed in a dust proof box and is equipped with all the safety devices necessary.
• CE conformity declaration

‍

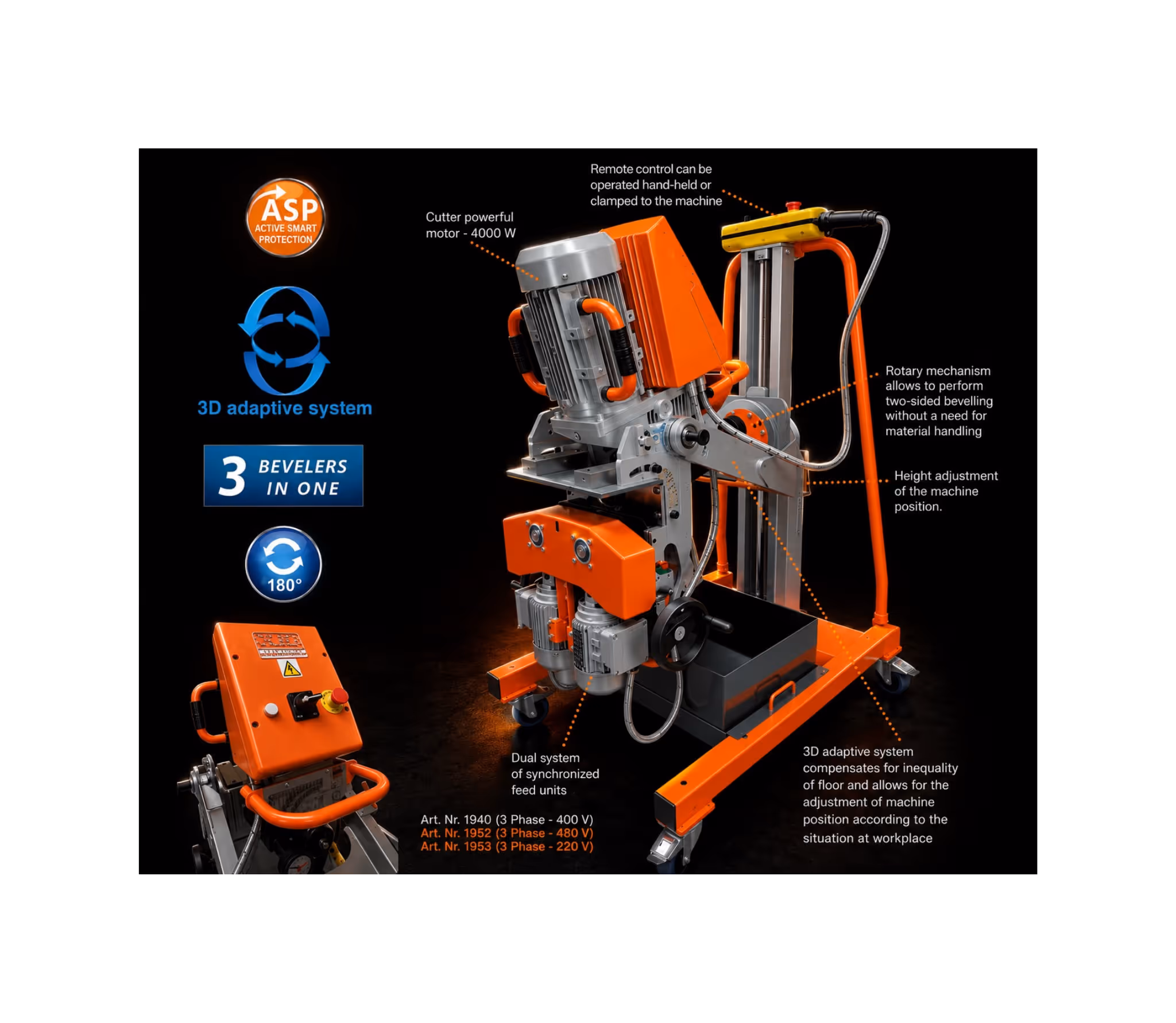

• unique MANIPULATOR 3D - manipulator provides a simple quick turn UZ50 Triumph of 180° to create double sided bevel X K. The operator does not need a crane to rotate the material. There is a significant saving of work time.
• the unique clamping system allows the machine UZ 50 Triumph to be assembled and disassembled (Quick System) within a few seconds without using any tools
• the beveler UZ 50 Triumph is "floating" on MANIPULATOR 3D and compensates the unevenness of the floor or the deformations of the steel plate.
• MANIPULATOR 3D allows the easy manipulation with beveler
• the required height of the machine can be set up by MANIPULATOR 3D by lift handle
• the movement of the machine is provided by massive wheels mounted on the carriage
• the possibility to bevel with MANIPULATOR 3D or without
• the possibility to use the MANIPULATOR 3D like a stationary station

‍

• EQUIPMENT for bevelling small flat steel
• Equipment is intended for use with the machine UZ50 TRIUMPH
• With the equipment is machine UZ50 TRIUMPH possible use for processing small workpieces
• The machine UZ50 TRIUMPH maintains a continuously adjust the bevel angle between 20°- 60°

‍

• Bevelling system UZ50 TRIUMPH with 3D manipulator
• including ECO cutter and 5 indexable insertes,
• table for bevelling of small size sheets UZP30(when ordering the SET)
• Tools
• User manual
