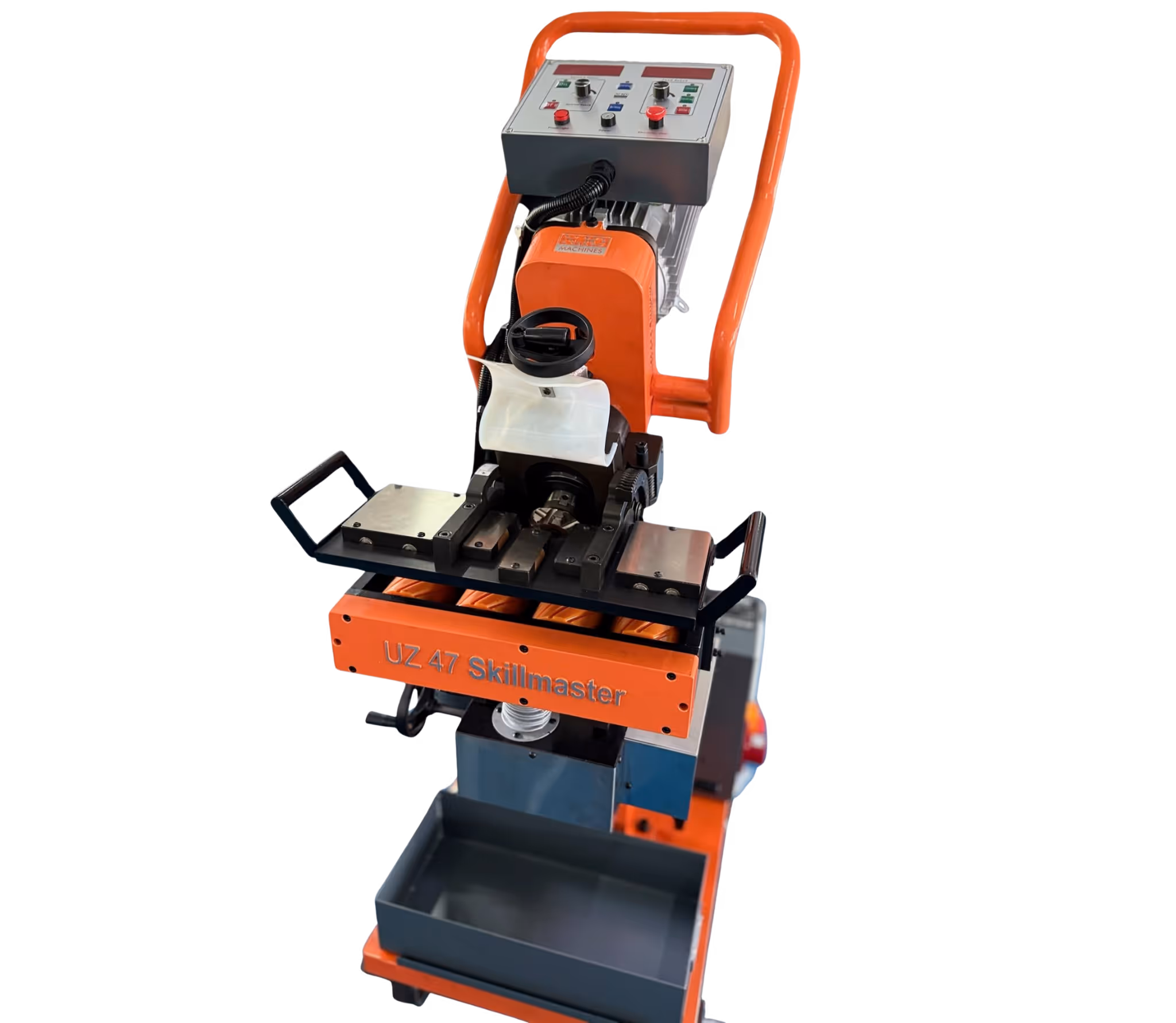

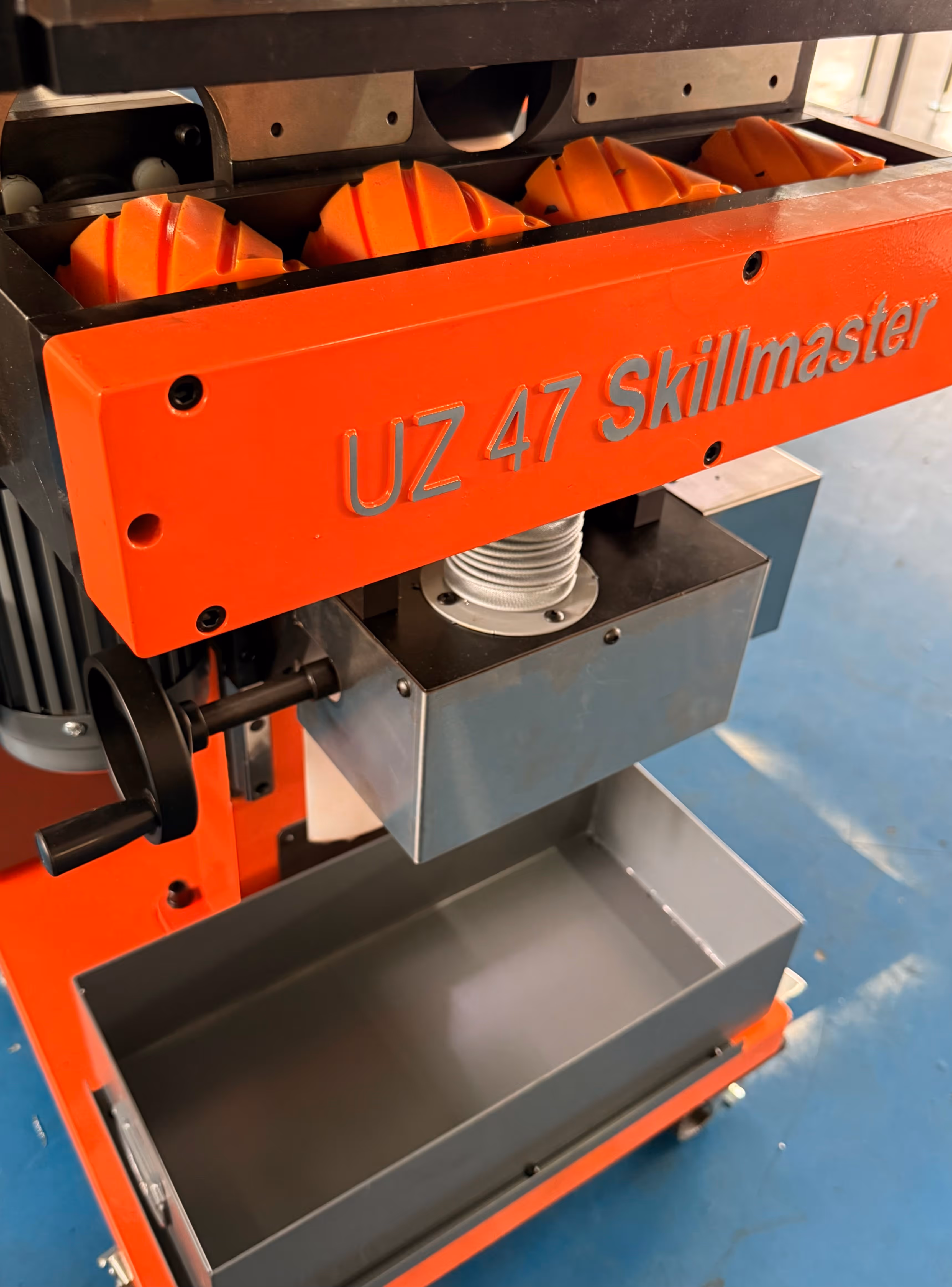

UZ47 SKILLMASTER

Name: UZ47 SKILLMASTER
Brand: N.KO Machines

BEVELLING SYSTEM

Unique multi-purpose bevelling machine with automatic feed for applications such as V-bevel, J-bevel, Cladding Removal, Facing and +70° chamfers. Suitable for machining structural steels including higher strength steels, stainless steels and other harder to machine materials such as Hardox or Domex.

‍

We offer this machine in the following voltages:

Bevelling system UZ47 Skillmaster
- Art. Nr. 4700 - 400V, 3 phase
- Art. Nr. 4702 - 480V, 3 phase
- Art. Nr. 4701 - 220V, 3 phase

‍

Share Product

Inquire Now

Line

UZ-Line

Art. Nr.

4700

Product Name

UZ47 SKILLMASTER

POWER

4000W

Max. Bevel Width

47mm / 1.87“

Bevel Angle

0° - 90°

Feeding

Automatic

Feed Rate

0-1,4m/min (0 - 4.59 ft/min)

Material Thickness

6 - 60mm /0.23“ - 2.36“

Weight

245kg / 540lb

Dimensions

970x720x1480 mm

PRODUCT MANUALS

UZ47 Skillmaster Manual EN 26092025

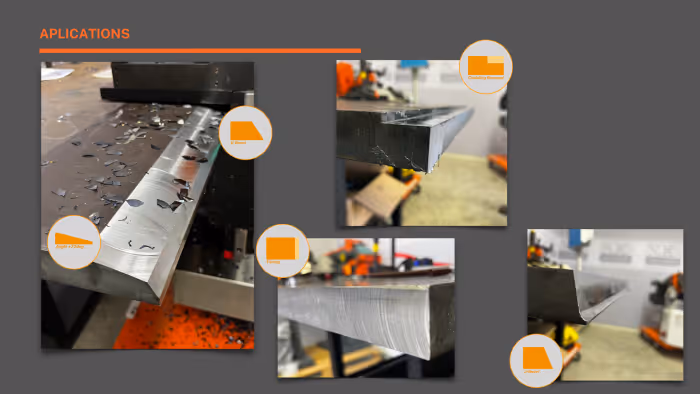

Bevel Types

V-Bevel

Facing

J-Bevel

Tapering

Double Bevel

Compound Bevel

Cladding Removal

View Bevel Details
