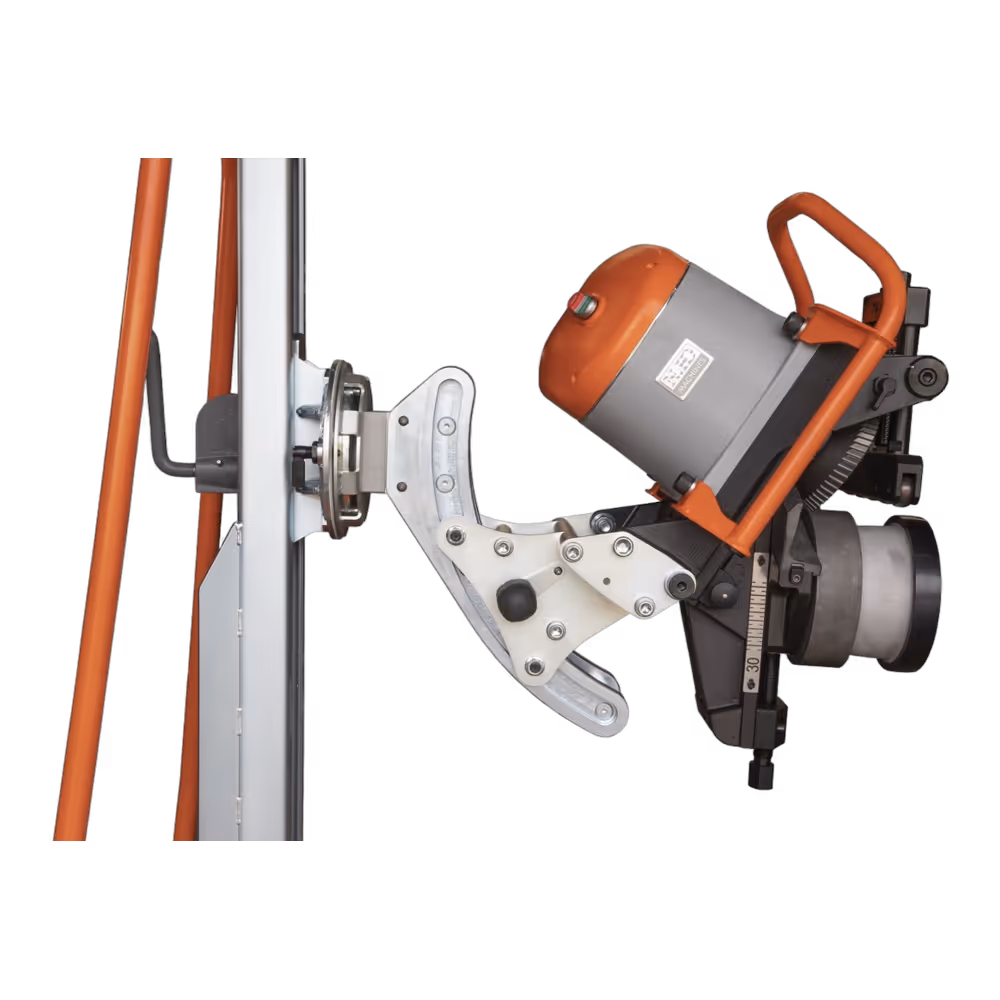

One of the largest and most powerful beveler in the field of rotary cutting bevelling machines. Maximum bevel width 29 mm / 1.14 in. Automatic feed. Bevel width 18 mm / 0.7 in in first cut by feeding speed 1.8 m/min. / 5.9 ft/min. The machine is equipped with an automatic feed and can be used as a stationary machine designed for large and small volumes of smaller workpieces. At the same time it can be used as a mobile bevelling system when the machine moves along the machined steel sheet at a rate of almost two meters per minute. The UZ 29 SPEEDER is capable of machining both standard and stainless steel. The machine has a supersilent drive not increasing the noise at the workplace. In addition it is possible to flip the entire machining unit upside down and create bevels for X and K form of the welds without handling machined material. This application is made possible by the rotary mechanism of the 3D manipulator, which is a standard machine equipment.

‍

‍

‍

We offer this machine in the following  voltages:

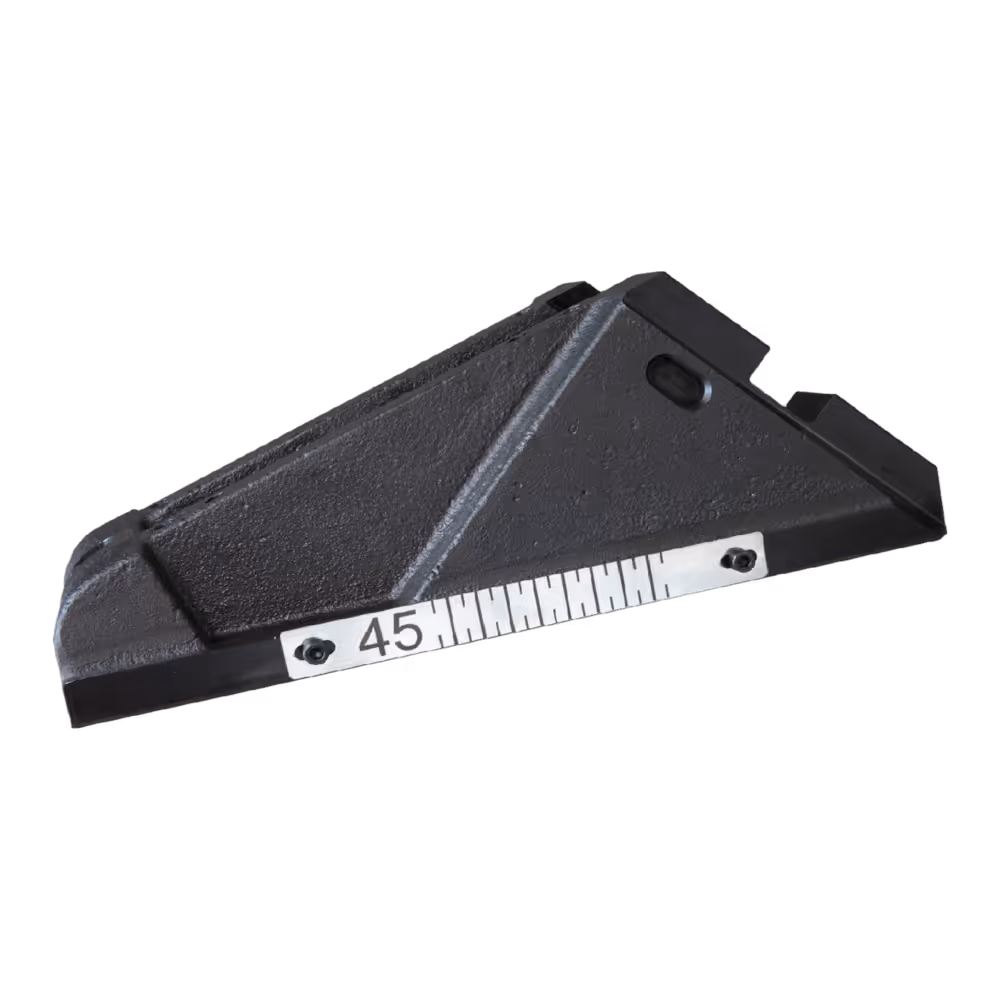

1. Bevelling system UZ29 Speeder - KIT 30° + 45°

   • Art. Nr. 1962- 400V, 3 phase
   • Art. Nr. 1903 - 480V, 3 phase
   • Art. Nr. 1907 - 220V, 3 phase
