UZ12 ULTRALIGHT

Name: UZ12 ULTRALIGHT
Brand: N.KO Machines

BEVELLING SYSTEM

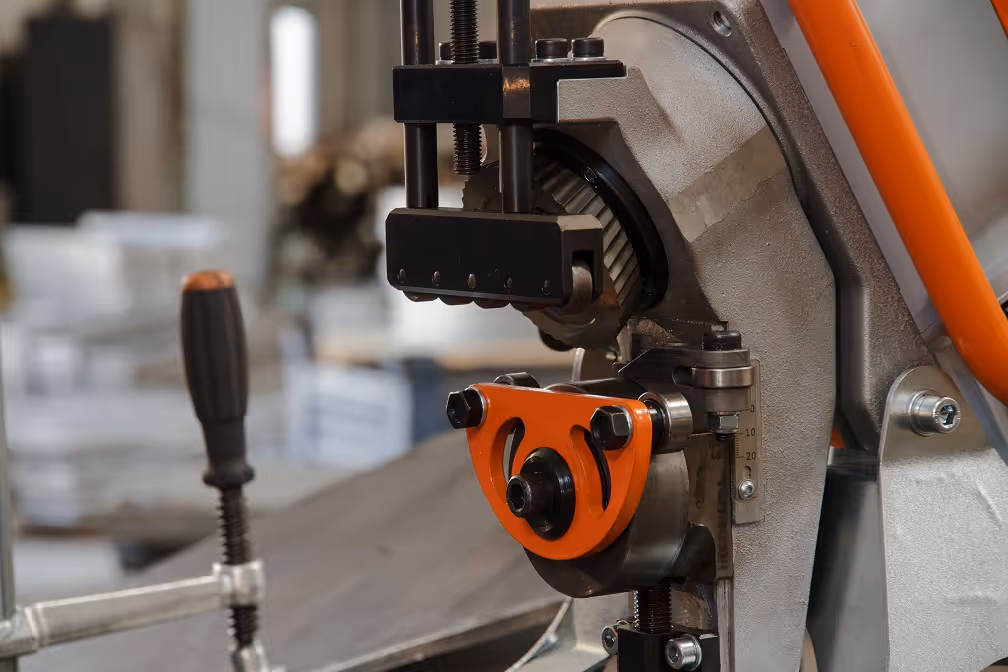

The UZ12 ULTRALIGHT is one of the lightest bevelling machines with the automatic feed in the market.
Thanks to its compact size and low weight it is perfect not only for workshops but also for assemblies.
The machine is equipped with the automatic feed. Working with UZ12 ULTRALIGHT is therefore very comfortable.
The quietest bevelling system on the market.

‍

We offer this machine in the following models and voltages:

Bevelling system UZ12 ULTRALIGHT - set (KIT 30° + 45°)
- Art. Nr. 1922 - 400V, 3 phase
Bevelling system UZ12 ULTRALIGHT - set (KIT 22,5° + 30°
+ 37,5° + 45° + 50° + pipe bevelling tool)
- Art. Nr. 1918 - 400V, 3 phase
- Art. Nr. 1818 - 480V, 3 phase
- Art. Nr. 1912 - 220V, 3 phase

Share Product

Inquire Now

Line

UZ-Line

Art. Nr.

1922

Product Name

UZ12 ULTRALIGHT

POWER

400 W

Max. Bevel Width

12 mm / 0.47 in

Bevel Angle

22.5°, 30°, 37.5°, 45°, 50° (replaceable KIT)

Feeding

Automatic

Feed Rate

1,8 m/min. / 5.9 ft/min.

Material Thickness

3 - 35 mm / 0.12 - 1.37 in

Weight

30 kg / 66 lb

Dimensions

470 x 294 x 523 mm / 18.5 x 11.57 x 20.59 in

PRODUCT MANUALS

UZ12 Ultralight User Manual EN

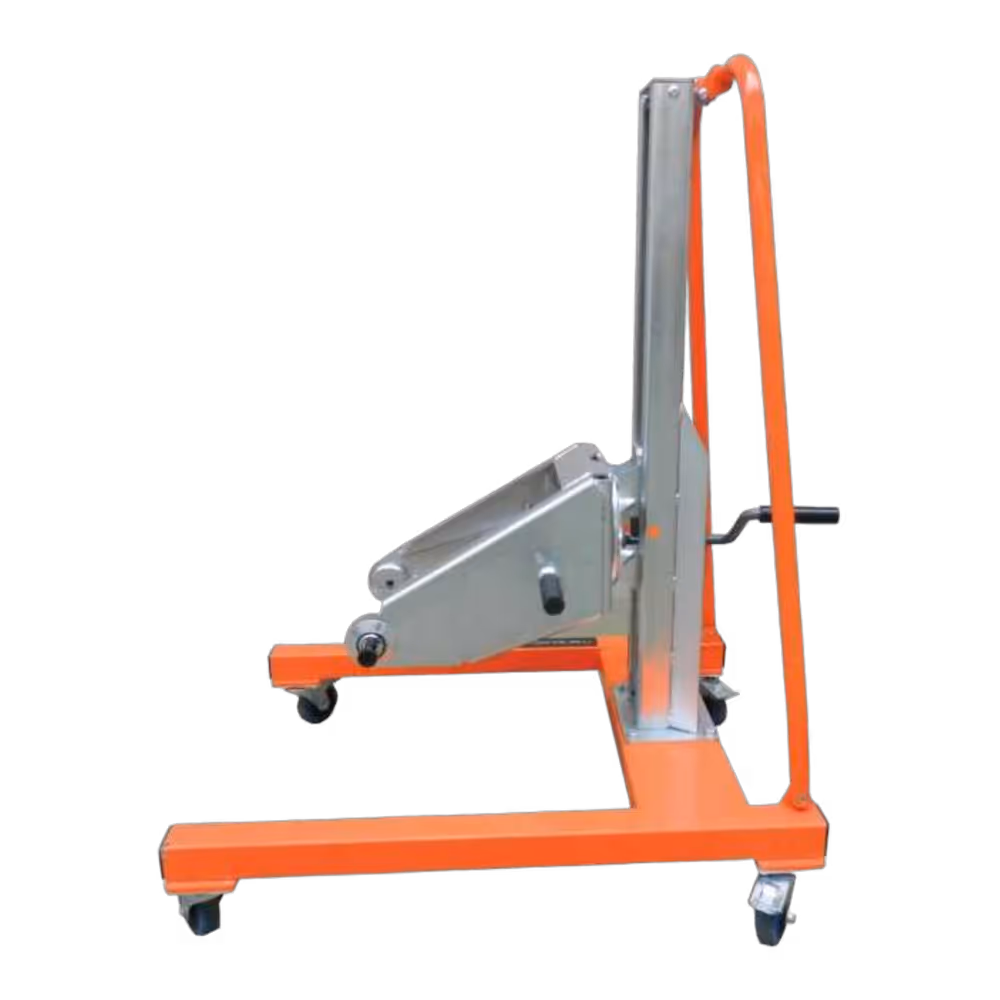

3D Manipulator User Manual EN

UZ12 Ultralight Catalogue Sheet EN

Bevel Types

V-Bevel

Double Bevel

View Bevel Details

V-Bevel

Double Bevel

Key benefits

- For conventional steel (up to strength of 600 MPA / 87 022 PSI), stainless steel, brass, copper and aluminium materials.
- For bevelling material with minimum dimensions - width 65 mm / 2.56 in, length 60 mm / 2.36 in, thickness 3 mm / 0.12in.
- Thickness of bevelled material 3 - 35 mm / 0.12 - 1.37 in.

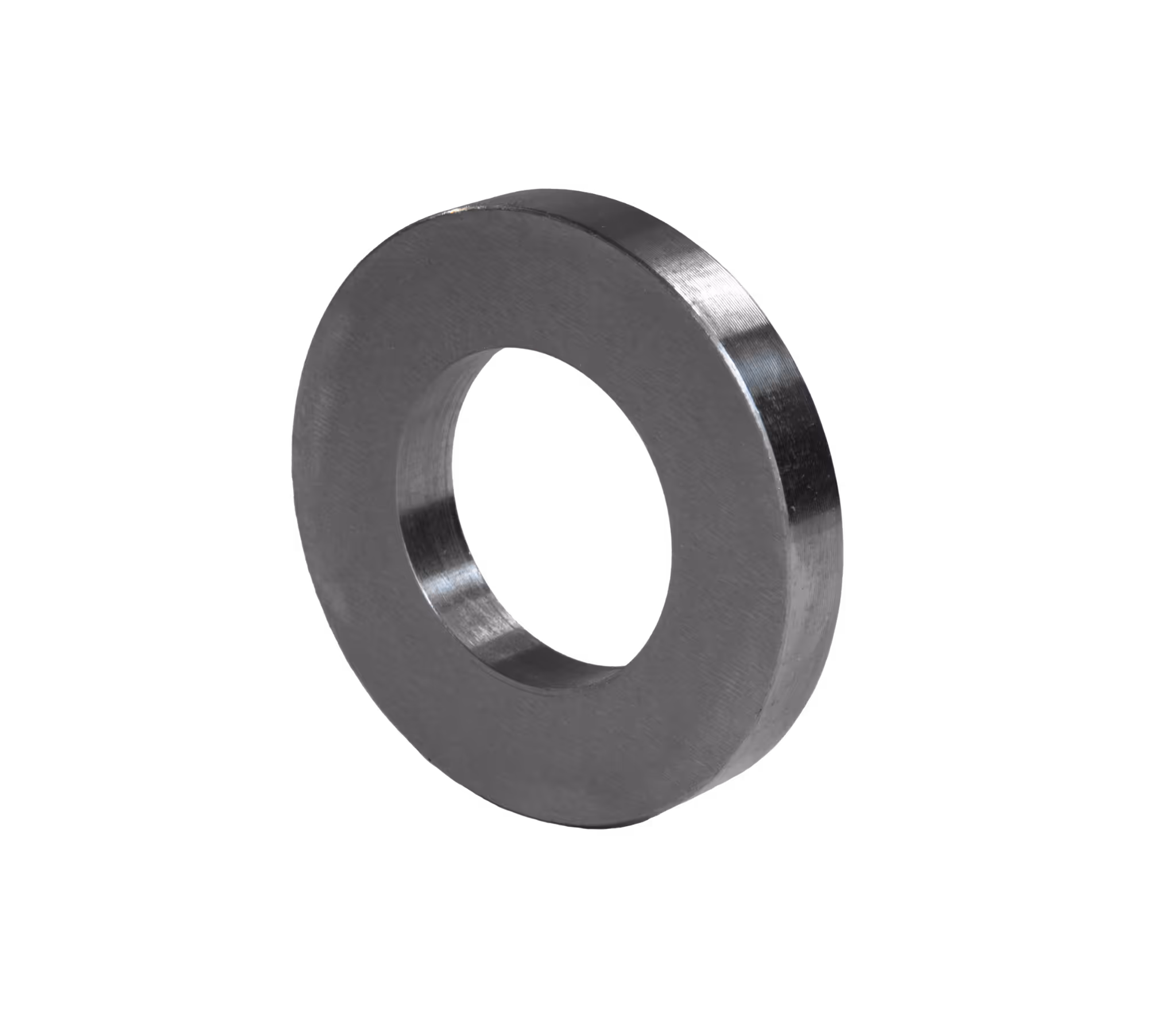

- Bevelling of pipes from the internal Ø 95 mm / 3.74 in.
- The bevel angle can be changed using replaceable arms (KIT for a given angle).
- The device is capable of performing double-sided bevel (X, K) without the need for material handling.
- Suprisingly silent drive.
- The machine is equipped with an automatic feed.
- Possibility of stationary and mobile use.
- The machine works on large workpieces without support at a speed of 1.8 m/min / 5.9 ft/min.
- Smaller parts of the material are inserted directly into the machine.
- Lightweight and compact design. One-man machine.
- Thermal protection of the motor
