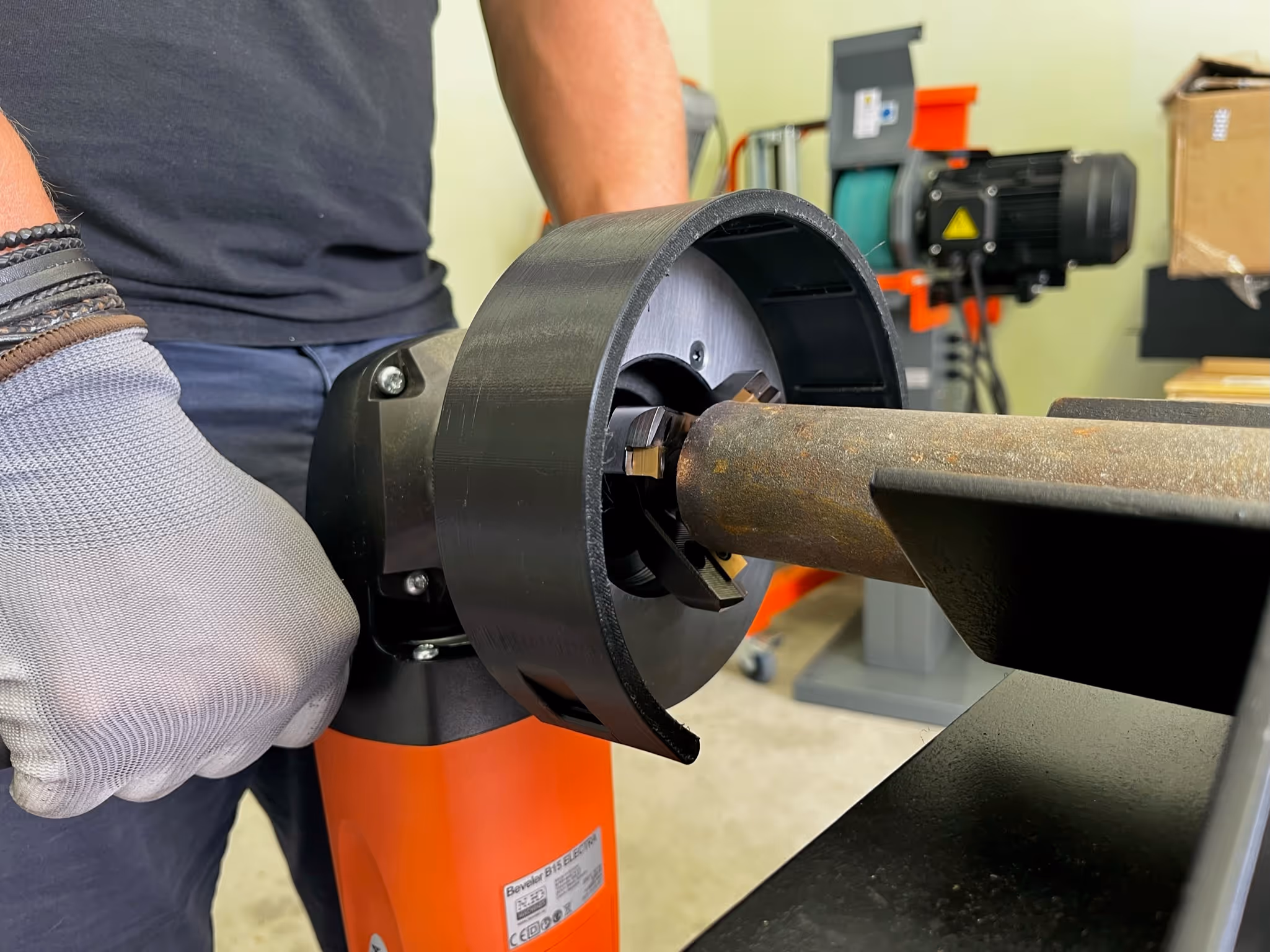

For machining tubes Ø 19.5 - 70 mm (0.76“ - 2.75“) The Twister tool is designed for machining pipe ends to prepare weld surfaces or deburring the pipe. Milling head is designed for use with N.KO Machines B15 Electra and B15 AIR machines. Alternatively B10 Electra. The Twister tool has been developed for machining iron, carbon structural steel, non-ferrous metals and plastics. The Twister must be used only with the safety cover. The safety cover is not included in the price. The safety cover art. nr.: 27409

The Twister uses double-sided coated cutting inserts - set of 10: Art. Nr. 28015

‍

Art. Nr. 27200 - Twister 2-3000‍

• Bevel angle: 30°
• Min. diameter of machined pipe: 19.5 mm (0.76“)
• Max. diameter of machined pipe: 70 mm (2.75“)
• Max. bevel width: 10 mm (0.39“)
• Number of cutting inserts: 3 pcs
• Number of mounting positions for cutting inserts: 3
• Tool weight (fully assembled, including guide mandrel): approx. 450 g (0.99 lb)

Art. Nr. 27201 - Twister 2-3705‍

• Bevel angle: 37.5°
• Min. diameter of machined pipe: 19.5 mm (0.76“)
• Max. diameter of machined pipe: 66 mm (2.59“)
• Max. bevel width: 10 mm (0.39“)
• Number of cutting inserts: 3 pcs
• Number of mounting positions for cutting inserts: 3
• Tool weight (fully assembled, including guide mandrel): approx. 450 g (0.99 lb)

Art. Nr. 27202 - Twister 2-4500‍

• Bevel angle: 45°
• Min. diameter of machined pipe: 19.5 mm (0.76“)
• Max. diameter of machined pipe: 60 mm (2.36“)
• Max. bevel width: 10 mm (0.39“)
• Number of cutting inserts: 3 pcs
• Number of mounting positions for cutting inserts: 3
• Tool weight (fully assembled, including guide mandrel): approx. 450 g (0.99 lb)

‍
