C-BITER

Name: C-BITER
Brand: N.KO Machines

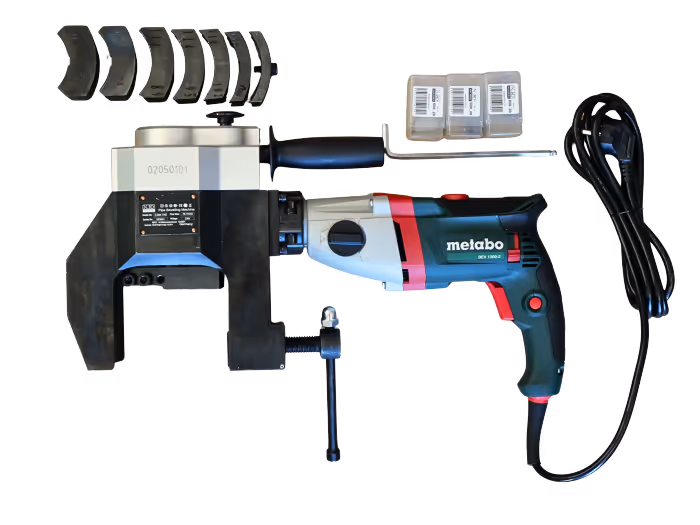

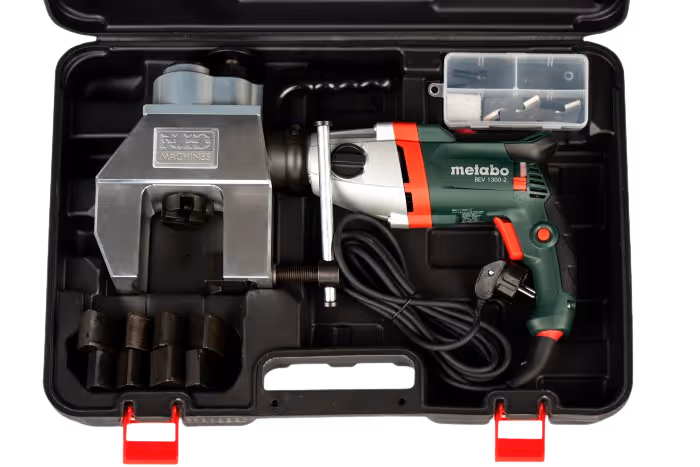

OUTSIDE clamping pipe beveler

The beveling system C-BITER is developed as a portable device for the preparation of welding surfaces on pipes and tubes. It is preferred for an easy operation, reliability and a generous power portion for machining tubes with wall thicknesses up to 12mm (.47"). C-BITER is a machine with external pipe clamping. The clamping and self-centering of the machine is provided by unique clamping jaws, outside of the tube. The automatic feed makes machining highly productive and comfortable. The machine can be used for bevelling pipes, but also for machining solid bars.

Share Product

Compare Models

Inquire Now

Line

Pipe-Line

Product Name

C-BITER

POWER

1300 W

Weight

9-15kg

PRODUCT MANUALS

C Biter Model E Operation Manual EN 25112025

Technical Sheet C Biter 63E 27112025

Bevel Types

V-Bevel

Facing

J-Bevel

Counterboring

Solid Pipe

V-Bevel

Facing

J-Bevel

Counterboring

Solid Pipe

Key benefits

Bevel operations including J-bevel.
Pipe face alignment operation – Facing.
Automatic machine feed.
Possibility of processing solid bars.
Possibility of pneumatic drive.
Possibility to customise cutting tools according to specific requirements on request.
Possibility to supply clamping jaws for the non-standard pipe diameter.
