B15 INOX

Name: B15 INOX
Brand: N.KO Machines

BEVELER

B15 INOX‍

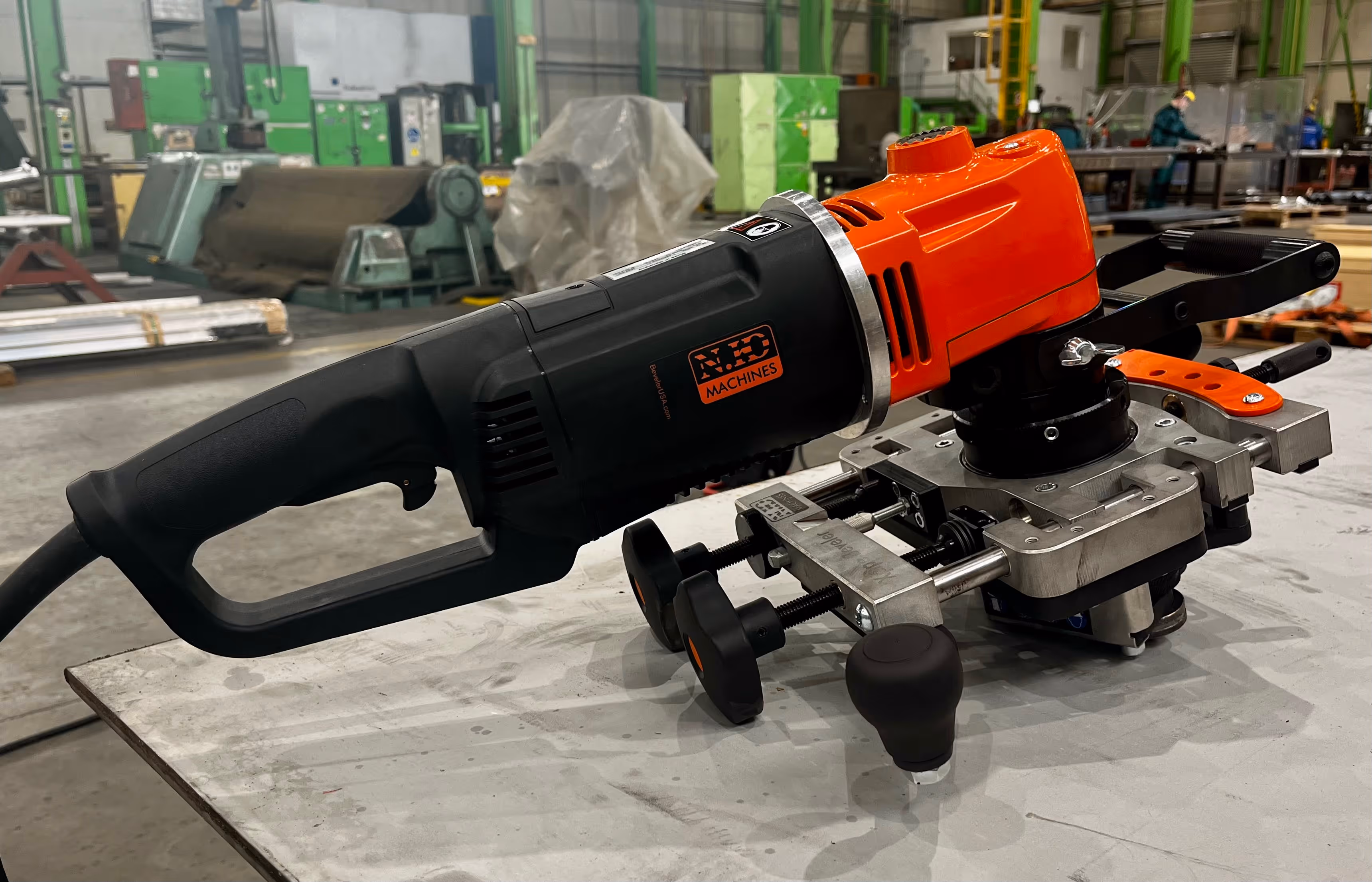

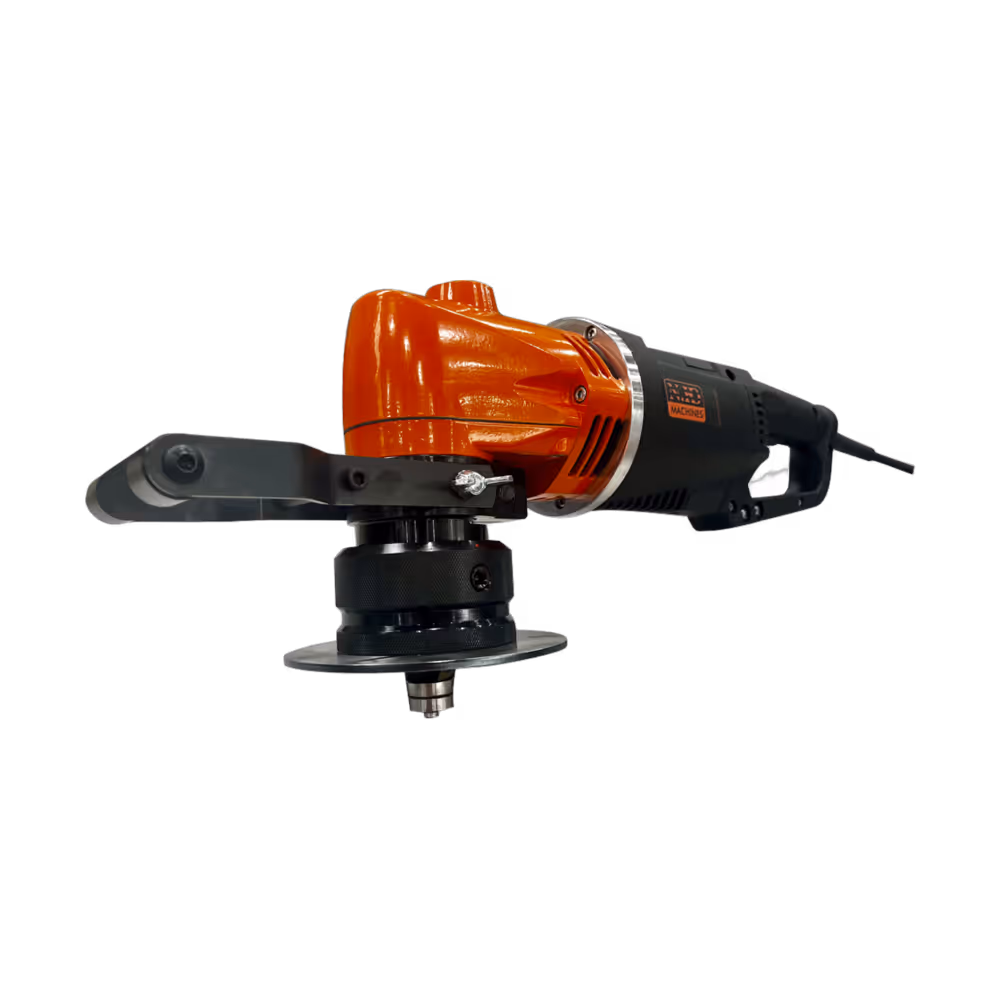

The B15 Inox is a hand-guided bevelling machine, specially designed for bevelling stainless steel. B15 INOX can be used alone or with inoXpipe. When used alone, it enables the machining of shaped workpieces with curves. On the other hand, use with InoXpipe is ideal for long and straight edges where inoXpipe provides a comfortable machine guide through the material. Suitable also for pipe bevelling.

‍

We offer this machine in the following models and voltages:

‍

B15 INOX (machine B15 INOX, InoXpipe, auxiliary handle, clamp)
- Art.Nr. 26254 - 230V
- Art.Nr. 26256 - 120V
B15 INOX (machine only. No accessories)
- Art.Nr. 26250 - 230V
- Art.Nr. 26251 - 120V

Share Product

Inquire Now

Line

B-Line

Art. Nr.

26254

Product Name

B15 INOX

POWER

2850W

Max. Bevel Width

0 to 15 mm / 0 to 0.6 in < 400 MPa

Bevel Angle

replaceable head 0° / 30° / 37,5° / 45° / 50° / 60° - other angles on demand

Rounding Radius

R 2,5 mm / R 3,5 mm / R 4 mm

Speed

1950 rpm

Feeding

Manual

Weight

18,75 kg/41,3 lb

PRODUCT MANUALS

B15 INOX Operation Manual EN 04112025

Bevel Types

V-Bevel

Facing

Radius

View Bevel Details

V-Bevel

Facing

Radius

Key benefits

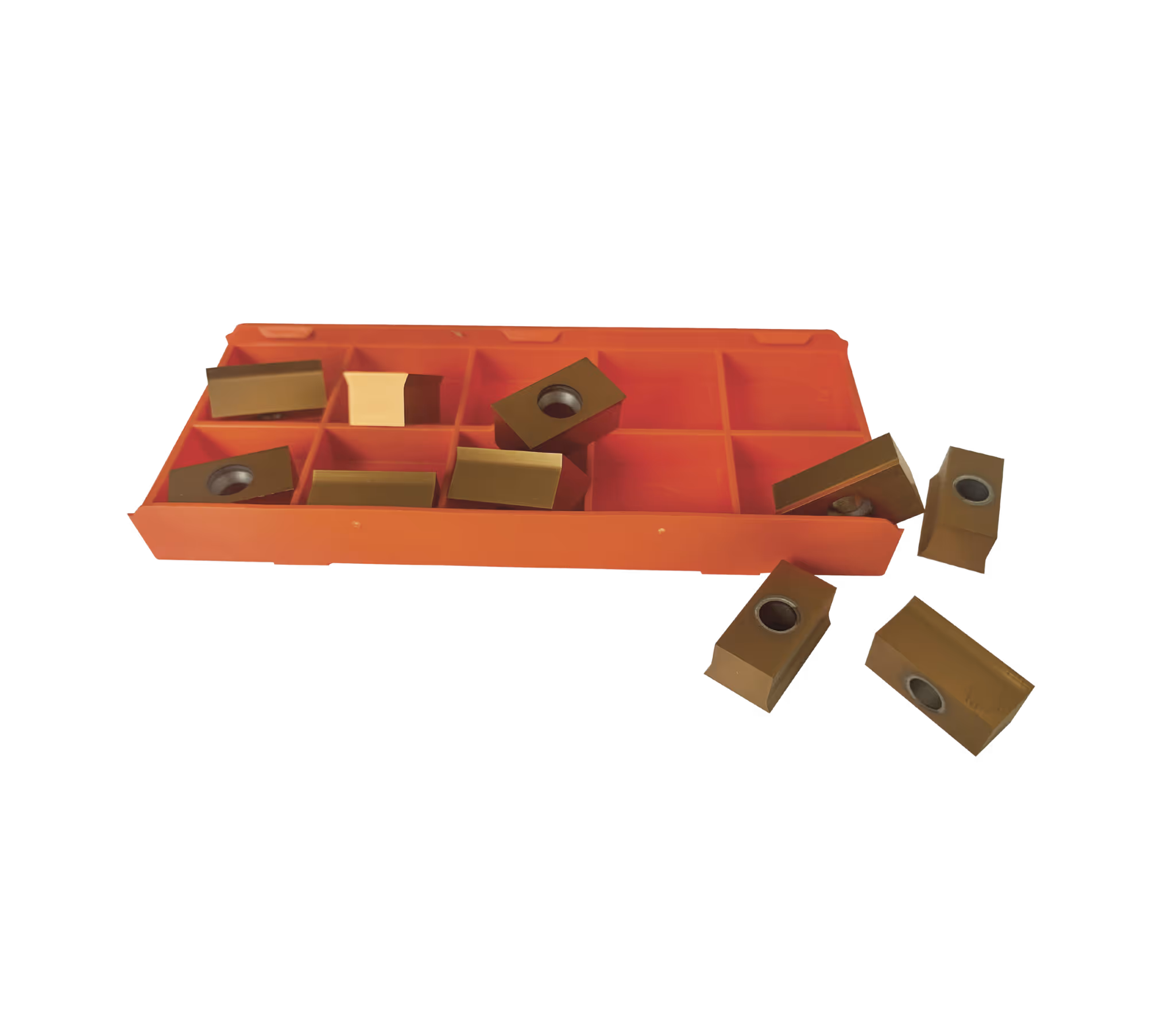

The mechanically reduced machine speed contributes to longer life of the cutting inserts.
Possibility to combine the machine with inoXpipe.
More comfortable guiding of the machine over the material.
Possibility to buy a clamp for inlet and outlet plate. Allows for safe and comfortable entry of the machine onto the workpiece.
Machine load LED indicator.
LED indicator for required carbon replacement.
Machining stainless steel materials.
Bevelling sheets and profiles — ideal for long, straight edges.
Bevelling pipes.
Bevelling shaped workpieces.
Edge rounding.
