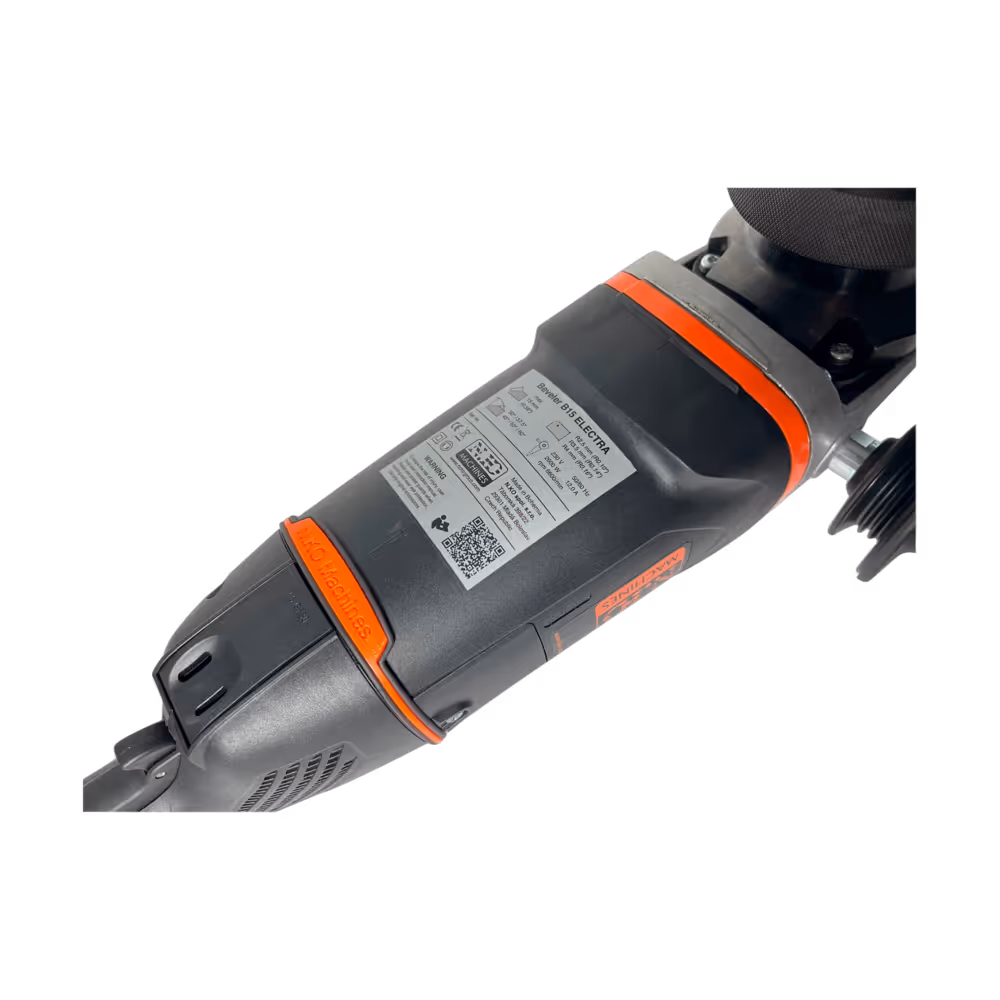

B15 ELECTRA NG

Name: B15 ELECTRA NG
Brand: N.KO Machines

HAND BEVELER

Designed for bevelling and deburring workpieces, internal and external radiuses and holes. Edge rounding function. Specially designed for producing bevels and welding preparation. Powerful electric drive for extreme loads. Over the years, the B15 Electra has become a real benchmark in its field. The new generation of this machine sets even higher standards for modern production. The new upgraded B15 Electra is equipped with the complete new generation of the motor, featuring patented dust protection for extended durability. This motor ensures long-lasting performance even in demanding conditions. The B15 Electra is engineered to provide unparalleled power, safety, and user comfort, making it the ideal choice for professionals seeking reliability and performance in their bevelling task.

‍

We offer this machine in the following models and voltages:

‍

Bevelling and deburring system B15 ELECTRA (without the milling head)
- Art.Nr. 25250 - 1 Phase, 220V
- Art.Nr. 25251 - 1 Phase, 110V
SET Bevelling system B15 ELECTRA + dock station B-Dock (without the milling head)
- Art.Nr. 25252 - 1 Phase, 220V
- Art.Nr. 25253 - 1 Phase, 110V
SET Bevelling system B15 ELECTRA + inoxXpipe Beveler (without the milling head)
- Art.Nr. 25254 - 1 Phase, 220V
- Art.Nr. 25256 - 1 Phase, 110V
SET Bevelling system B15 ELECTRA + dock station B-Dock + inoXpipe Beveler (without the milling head)
- Art.Nr. 25255 - 1 Phase, 220V
- Art.Nr. 25257 - 1 Phase, 110V

‍

Share Product

Inquire Now

Line

B-Line

Art. Nr.

25250

Product Name

B15 ELECTRA NG

POWER

2.600 W (230V) / 15 AMPS (120V)

Max. Bevel Width

0 to 15 mm / 0 to 0.6 in < 400 MPa

Bevel Angle

replaceable head 0° / 30° / 37,5° / 45° / 50° / 60° - other angles on demand

Rounding Radius

R 2,5 mm / R 3,5 mm / R 4 mm

Speed

6.600 RPM

Feeding

manual

Weight

9,5 kg / 20.9 lb

PRODUCT MANUALS

B15 ELECTRA NG User Manual EN

Bevel Types

V-Bevel

Facing

Radius

View Bevel Details

V-Bevel

Facing

Radius

Key benefits

Scale for accurate bevel size adjustment.
For bevelling and deburring steel, aluminium and other materials.
Replaceable head for changing bevel angle.
Handheld powerful equipment.
Swivelling ergonomic handle.
Edge rounding function, preparation before surface treatment.
Manufactured in Czech Republic, with a high-performance German-manufactured motor.
Electronic Safety Shutoff: Reduces kickback when the milling head jams, providing superior user protection.
Rotatable Main Handle: The main handle can rotate, and the auxiliary handle can be mounted in 3 positions for optimal grip during bevelling tasks.
Soft Start with Inrush Current Limiter: Prevents tripping circuit breakers when the machine starts, ensuring smooth operation.
Electronic Overload Protection: Protects the machine from overheating, while a restart protection feature prevents accidental restarts.
New, more powerful and super-reliable German motor.
Anti-vibration system: Integrated damping system and auxiliary handle reduce vibrations, protecting user health.
Safety Switch: The new safety switch prevents unintentional startup.
Automatic Motor Shutoff: The machine automatically turns off when the carbon brushes wear out, safeguarding the motor.
LED Indicator: Displays the status of restart protection or overheating.
